Vacuum Workholding Systems: Large Vacuum Chuck And Electric Vacuum Pump

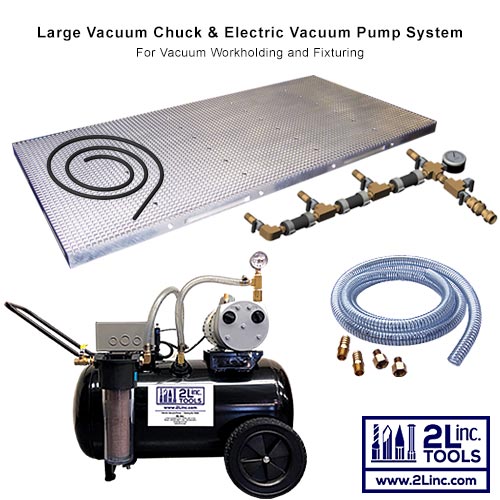

Complete Vacuum Workholding Systems include everything needed to get started vacuum workholding. Each Complete Vacuum Workholding System includes: Large Vacuum Chuck, Portable Oil Free Electric Vacuum Pump, Vacuum Port Assembly, Vacuum Hose Kit and Gasket Cords. Choose from 3 sizes of precision flat ground Aluminum Vacuum Chucks which have 1/2″ Gasket Cord grid spacing, each designed with multiple vacuum ports. 13″ x 25″ x 1.5″ Vacuum Chuck 18″ x 36″ x 1.5″ Vacuum Chuck 24″ x 48″ x 1.5″ Vacuum Chuck Portable Oil Free Electric Vacuum Pump: 10 CFM Vacuum Pump 10.5 Gallon Steel Tank Oil and maintenance free ¾ hp Vacuum Pump Motor Accommodates a 1,200 sq. in. sealed Vacuum Chuck Automatic adjustable Vacuum Switch allows for auto on/off at a set vacuum. Vacuum Port Assembly: Multiple vacuum ports with shut off valves on each port Vacuum quick disconnect with shut off valve Vacuum Gauge Gasket Cord – Two sizes for with with small and large workpieces: 1/8″ x 5/16″ (50 ft. length) 3/16″ x 5/16″ (50 ft. length) Vacuum Hose Kit Custom size Vacuum Chucks are produced in house with quick turn-around time. Optional Replaceable Top Plates allow for machining and drilling through the workpiece, eliminating possible damage to the surface of the Vacuum Chuck. View complete product details. View options and pricing.
