Vacuum Workholding Systems: Large Vacuum Chuck And Automatic Vacuum Pump

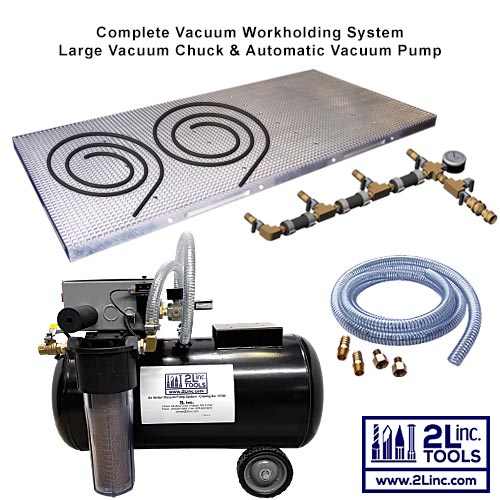

These Complete Vacuum Workholding Systems include everything needed to get started vacuum workholding. Each Complete Vacuum Workholding System includes: Large Vacuum Chuck, Portable Automatic Vacuum Pump, Vacuum Port Assembly, Vacuum Hose Kit and Gasket Cords. Choose from 3 sizes of precision flat ground Aluminum Vacuum Chucks which have 1/2″ Gasket Cord grid spacing, each designed with multiple vacuum ports. 13″ x 25″ x 1.5″ Vacuum Chuck 18″ x 36″ x 1.5″ Vacuum Chuck 24″ x 48″ x 1.5″ Vacuum Chuck Automatic Air Powered Vacuum Pump System: Portable, Automatic Vacuum Pump System creates a vacuum using compressed air (shop air). Use for a wide range of vacuum workholding, forming, pressing, and laminating processes. Automatic Adjustable Vacuum Switch allows for auto on/off at a set vacuum. 4.5 SCFM Vacuum Pump. 10.5 Gallon Steel Tank. Max Vacuum of 22″ HG – 26″ HG. Generates the vacuum using just 5 SCFM of Shop Air at 70-80psi. Automatic On/Off Vacuum Pump is environmentally conscious! It can be left unattended for periods of time and there is no oil to dispose of. Quiet 72db noise level with the included No- Clog Air Silencer. Built in wheels and handle make this light weight unit easy to move from machine to machine. The large coolant trap filter helps keep contaminants from entering the 10.5 gallon steel tank and there is a bottom drain on the tank if needed. Vacuum Port Assembly: Multiple vacuum ports with shut off valves on each port Vacuum quick disconnect with shut off valve Vacuum Gauge Gasket Cord – Two sizes for with with small and large workpieces: 1/8″ x 5/16″ (50 ft. length) 3/16″ x 5/16″ (50 ft. length) Vacuum Hose Kit Custom size Vacuum Chucks are produced in house with quick turn-around time. Optional Replaceable Top Plates allow for machining and drilling through the workpiece, eliminating possible damage to the surface of the Vacuum Chuck. View complete product details. View options and pricing.
