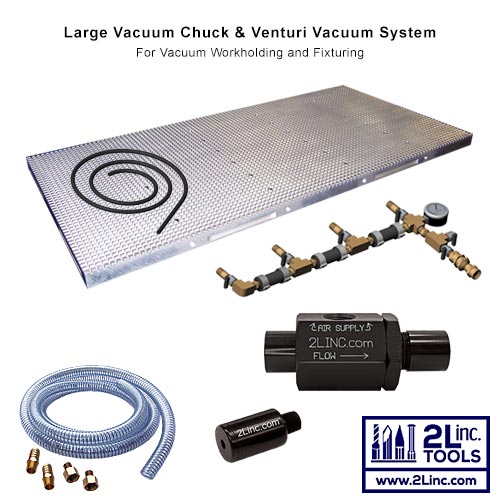

Vacuum Workholding Systems: Large Vacuum Chuck And Air Venturi Vacuum

Complete Vacuum Workholding Systems include everything needed to get started vacuum workholding. Each Complete Vacuum Workholding System includes: Large Vacuum Chuck, Vacuum Port Connection Assembly, Gasket Cords, Vacuum Hose Kit Connection, and a 1/4″ NPT Air Venturi Vacuum Pump as the Vacuum Supply., . Choose from 3 sizes of precision flat ground Aluminum Vacuum Chucks which have 1/2″ Gasket Cord grid spacing, each designed with multiple vacuum ports. 13″ x 25″ x 1.5″ Vacuum Chuck. 18″ x 36″ x 1.5″ Vacuum Chuck. 24″ x 48″ x 1.5″ Vacuum Chuck. 1/4″ NPT Air Venturi Vacuum Generator Pump: Simple shop air connected to the Air Venturi Vacuum creates a Vacuum. Straight through filter free design of the Air Venturi Vacuum helps prevent clogging from debris when machining. 1/4″ NPT No Clog Air Exhaust Silencer: For use with the Air Venturi Vacuum. Filter free to prevent clogging from debris. Vacuum Port Assembly: Multiple vacuum ports with shut off valves on each port. Vacuum quick disconnect with shut off valve. Vacuum Gauge. Vacuum Hose Kit Connection: 10 ft hose. 3/8″ connections. Gasket Cords – Two Sizes for use with small and large workpieces: 1/8″ x 5/16″ (50 ft. length) 3/16″ x 5/16″ (50 ft. length) Custom size Vacuum Chucks are produced in house with quick turn-around time. Optional Replaceable Top Plates allow for machining and drilling through the workpiece, eliminating possible damage to the surface of the Vacuum Chuck. View complete product details. View options and pricing.
