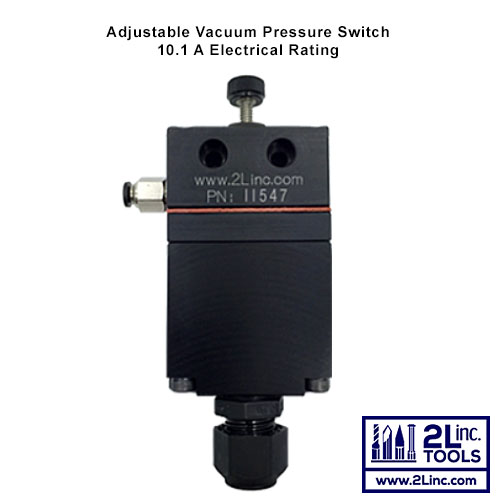

Adjustable Vacuum Pressure Switches are used for many worholding and vacuum applications, Vacuum Automation Systems, Vacuum Pumps, CNC Safety Controls and Vacuum Forming. These Adjustable Vacuum Switches are also for use with the 2L Portable Oil-Free Electric Vacuum Pump and the Portable Air Powered Vacuum Pump System. This Adjustable Pressure Switch has both Normally Open and Normally Closed Quick Connect Terminals. Tight repeatable deadband for consistent operation. 10.1A Electrical Rating. Vacuum Range: 5 – 30 in Hg. Simple to adjust with one thumbscrew. 10-32 vacuum port. Two mounting holes for #6 SHCS. Quick Connect Terminals.. Electrical Switch approved according to EN 61058 and UL 1054. Ambient temperature -40 to max. 100° C. Note: When using a vacuum chuck for workholding, the Vacuum Switch can be used to tie inline with the Feed-Hold Switch on the CNC Machine to stop the cnc movement if your vacuum is lost. View complete specs. View pricing.
