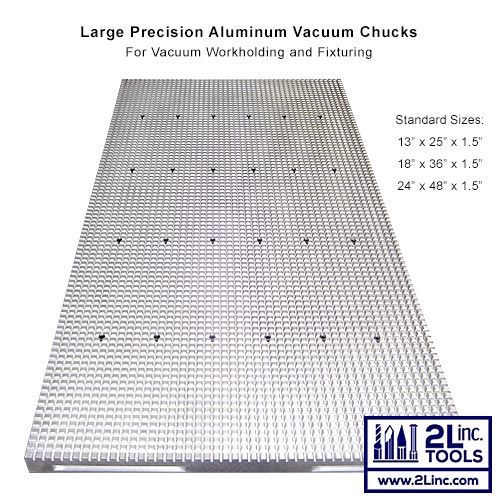

2L Precision Large Vacuum Chucks are produced from flat ground hi-tensile Cast Aluminum plate. Large Vacuum Chucks can be used with your existing Vacuum Pump or with a 2L Air Venturi Vacuum Pump or Oil-Free Portable Electric Vacuum Pump. Each Vacuum Chuck has individual Vacuum Ports with multiple vacuum holes per port which allow for flexible use of the entire top surface. The grid design maximizes vacuum holding power and allows for removing material from the top surface if the Vacuum Chuck is damaged. 1/2″ spacing between the Gasket Cord Slots provides for flexible workpiece placement, optimizes table space, and optimizes the amount of workpiece exposed to the vacuum. Threaded holes in the top surface of the Vacuum Chucks allow use of Workstops for aligning workpieces. Precision Vacuum Chucks available in 3 standard sizes. 13″ x 25″ x 1.5″. 18″ x 36″ x 1.5″. 24″ x 48″ x 1.5″. Custom size Vacuum Chucks are produced in house with quick turn-around time. These Large Vacuum Chucks are also available in a Complete Vacuum Chuck & Vacuum Pump System which include everything needed to get started vacuum workholding. View Complete Vacuum Chuck and Pump Systems. Optional Replaceable Top Plates allow for machining and drilling through the workpiece, eliminating possible damage to the surface of the Vacuum Chuck. View complete product details below. View options and pricing below.
