Portable Electric Vacuum Pump
$52.27
$91.47

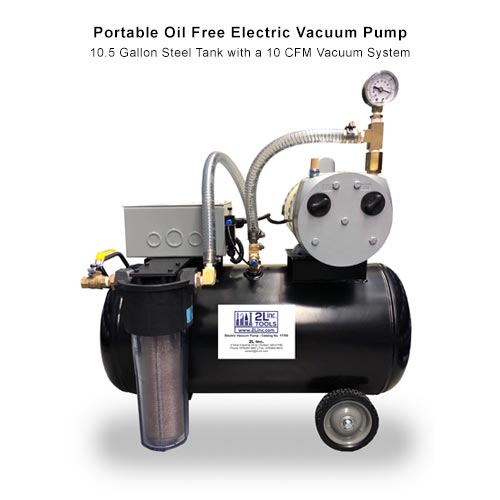

Maintenance Free, Portable, Oil Free Electric Vacuum Pump System. Use for high production Vacuum Workholding, Fixturing, and Vacuum Forming. This Electric Vacuum Pump can be used with all of the 2L Modular Vacuum Chucks, Large Vacuum Chucks, and many other vacuum workholding systems. This Portable Electric Vacuum Pump operates similar in principal to a Standard Air Compressor. The Automatic Vacuum Switch controls the operation of the Vacuum Pump. As the vacuum level drops in the storage tank, the Vacuum Switch turns the Vacuum Pump on until the upper limit of the vacuum is reached. Once the upper vacuum limit is reached the Vacuum Pump shuts off. The Electric Vacuum Pump cycles on and off automatically as needed, therefore constant monitoring is not necessary. 10 CFM Vacuum Pump. 10.5 Gallon Steel Tank with Wheels, Handle, and a Bottom Drain. 26â Hg. Max Vacuum. 3/4 hp Oilless Vacuum Pump Motor. Automatic on/off Adjustable Vacuum Switch for set vacuum. Large visible Inlet Filter. 110 VAC / 9.2A power connection. View complete product details.
